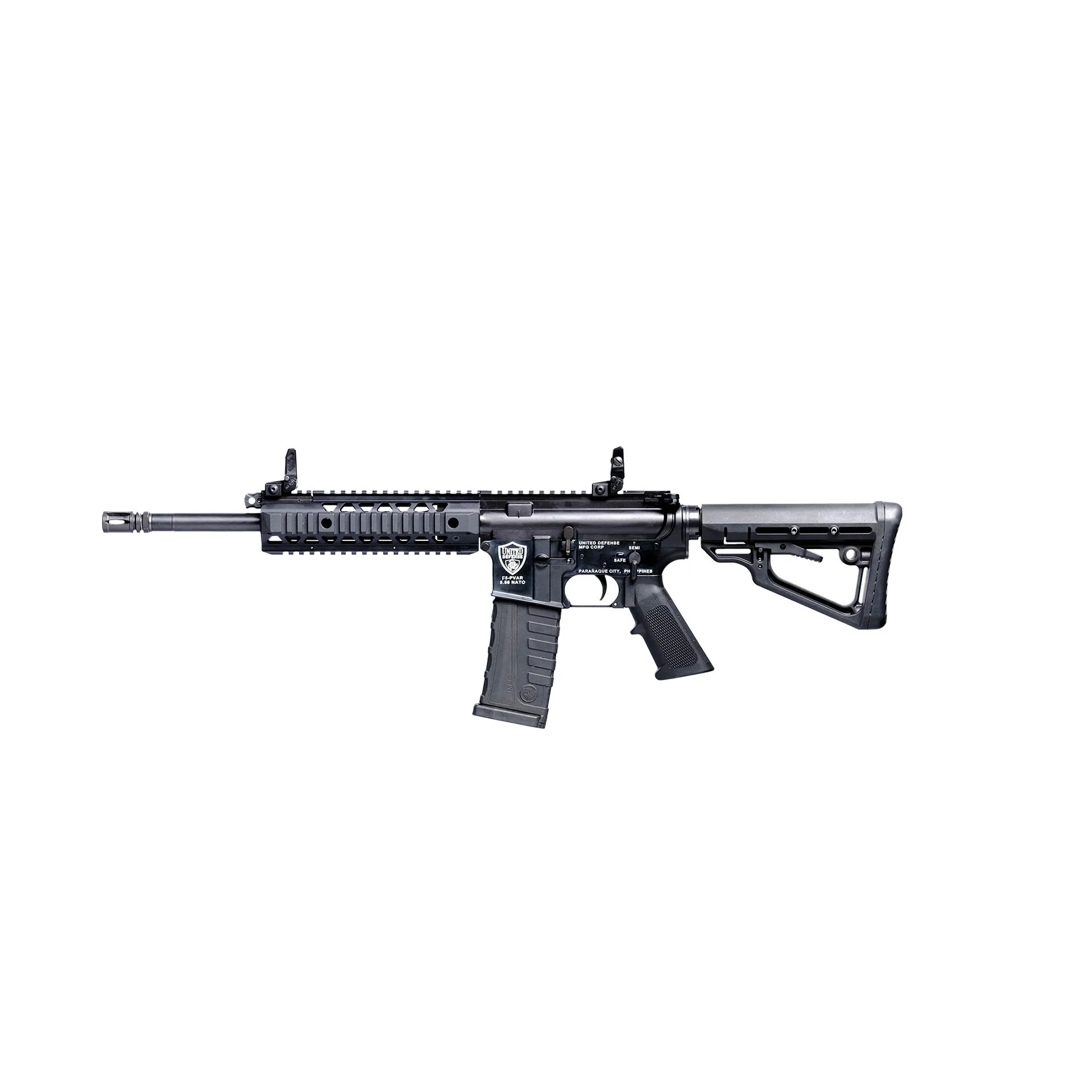

F5-PVAR
Full-automatic
United Defense Mfg Corp's F5-PVAR rifles are variants of the M16 and M4 rifles and come in two types: The "F-series" are the military full automatic models. "S-series" are the semi-automatic models. These rifles are chambered in the time-tested 5.56 NATO round (5.56 x 45mm) and designed to hit point targets up to 600 meters (MER) with the use of a 14.5-inch barrel.
TECHNICAL SPECIFICATIONS
OPERATING SYSTEM
PVAR Gas and Piston
CALIBER
5.56 NATO
CLASSIFICATION
Military Assault Rifle (F-series)
RATE OF FIRE
Full-automatic (F-series)
BARREL TYPE
Black Manganese Parkerized 4150 Carbon Steel Ordnance Grade
BARREL LENGTH
11.5 and 14.5 inches
WEIGHT
3.0 kg to 4.0 kg
depends on the barrel length and type of handguard
FEED SYSTEM
30-round Detachable Magazine
MAXIMUM EFFECTIVE RANGE
600 meters (point target)
800 meters (area target)
14.5-INCH BARREL
LENGTH
depends on the buttstock and barrel length
TRIGGER
Single stage
with a trigger pull averaging 5 lbs., with option for two- stage for semi-auto precision use
RIFLING
1 x 7 or 1 x 8 twist
FLASH HIDER
Shuriken
any type of tactical compensator or flash hider
BOLT CARRIER GROUP
Made of 8620 Steel
ACCURACY
Maximum of Two (2) MOA
using combat load M855 ammunition
BODY COLOR
Anodized Black
MUZZLE VELOCITY
Approximately 3,100 ft/sec (M855)
