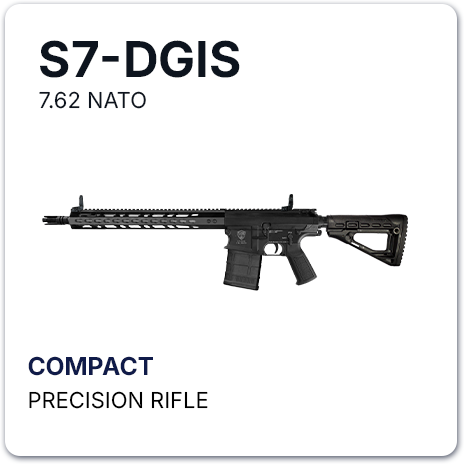

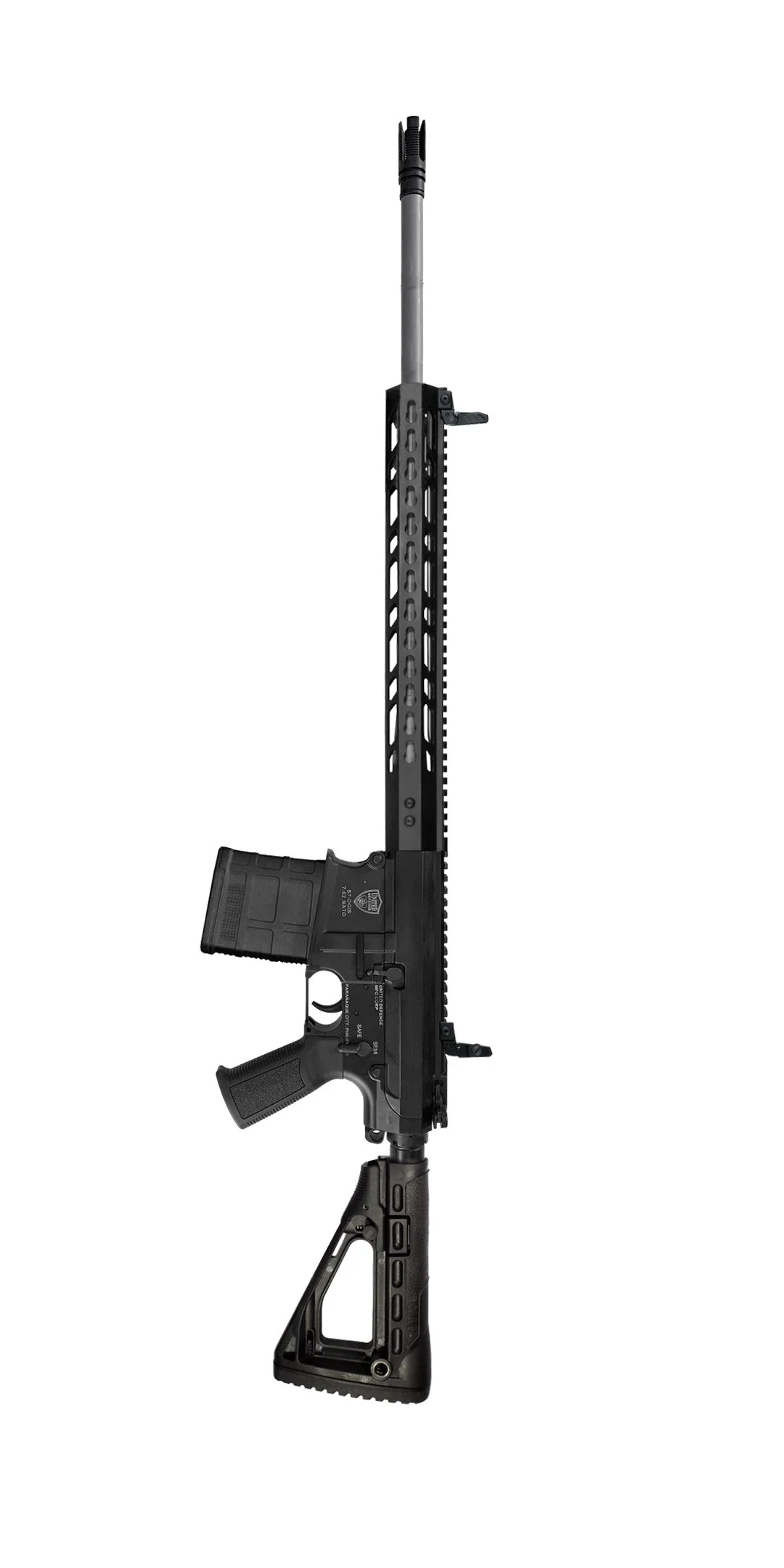

S7-DGIS
FULL LENGTH

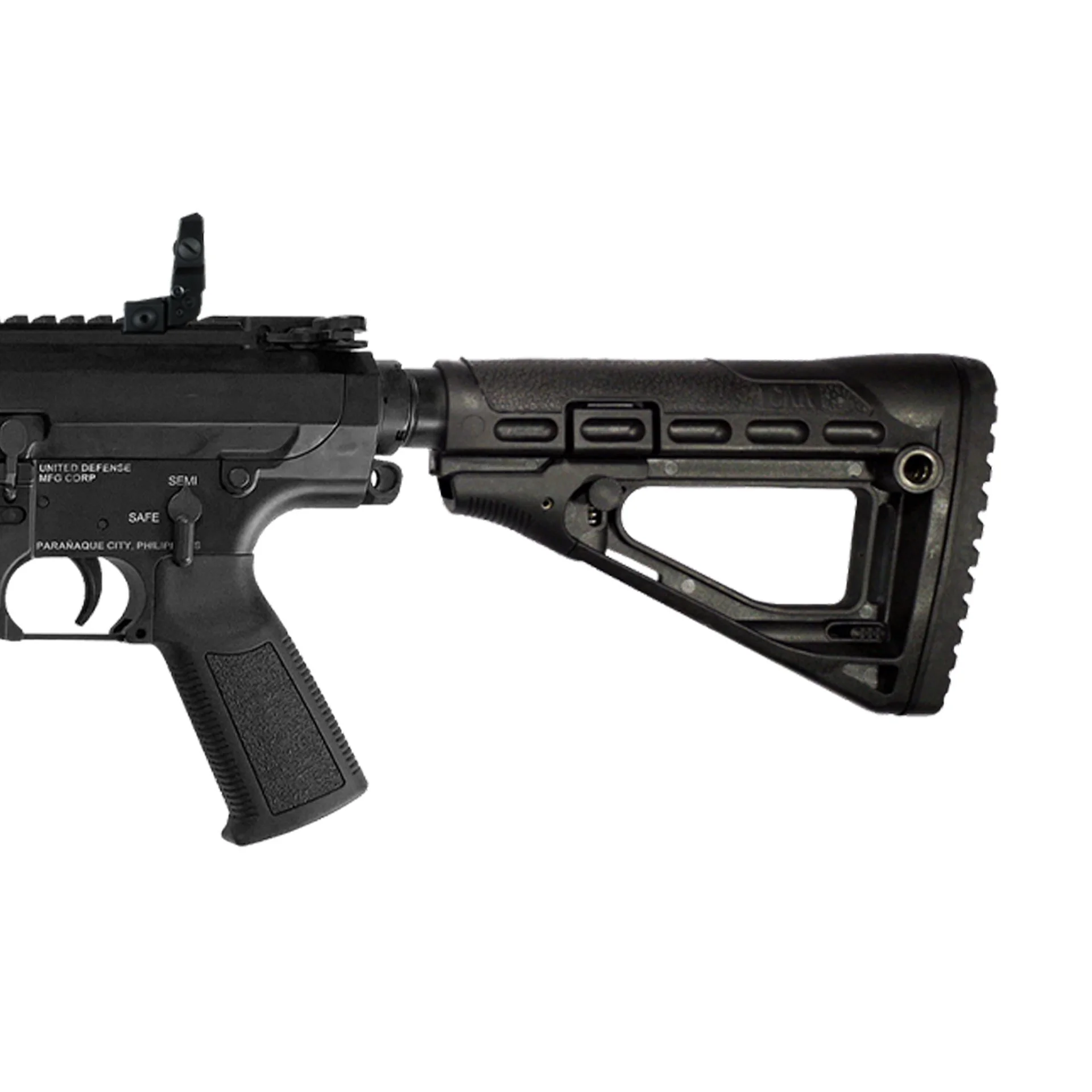

United Defense Mfg Corp’s S7-DGIS is a variant of the M110- SASS, Semi-Automatic Sniper System precision rifles chambered in the time-tested 7.62 NATO round (7.62 x 51mm) and designed to hit point targets up to 800 meters (MER) and area targets up to one kilometer. The S7 takes after the M110 battle rifle designed by Eugene Stoner. The DGIS is a simple design that uses the hot gases coming from the gas port of the barrel and through a gas tube the hot gases are rammed into the bolt carrier group to cycle the round. The S7-DGIS uses a one piece KeyMod picatinny rail handguard held securely only at the barrel extension which allows the barrel to “float” and preserve barrel harmonics while in battery. This allows for greater accuracy and consistency. As designed, the barrel does not touch any part of the entire length of the handguard except at the barrel extension. The barrel comes in different lengths: 14.5, 16, 18, 20, 22.5, 24 and 25 inches with a choice of either fixed or retractable buttstock.

TECHNICAL SPECIFICATIONS
CALIBER
7.62 NATO
CLASSIFICATION
Precision Rifle
OPERATING SYSTEM
Direct Gas Impingement System (DGIS)
BARREL TYPE
Non-Glare, Matte Stainless Steel Bull Barrel, SS-410 Premium or Black Parkerized Carbon Steel 4150 Ordnance Grade
RATE OF FIRE
Semi-automatic
BARREL LENGTH
20, 22, 24, and 25 inches
WEIGHT
Around 5 kg to 6 kg
without accessories | magazine unloaded
MAXIMUM EFFECTIVE RANGE
800 meters (point target)
1,000 meters (area target)
22.5-INCH BARREL

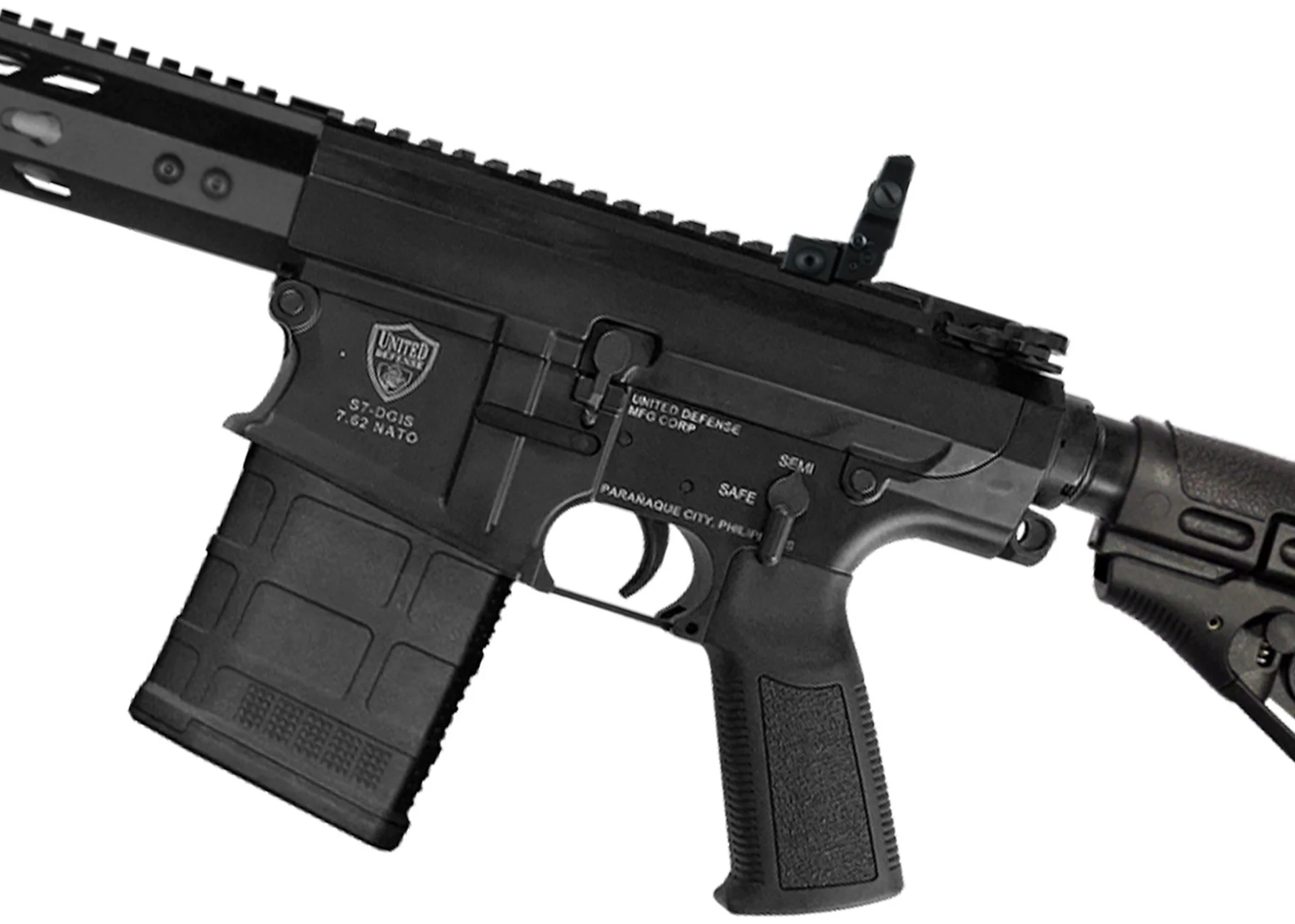

FEED SYSTEM
20-round Detachable Magazine
LENGTH
Approximately 44 inches
22.5-INCH BARREL
TRIGGER
Single Stage
with a trigger pull averaging 4.5 lbs. with option for Two- Stage trigger for Sniper Application

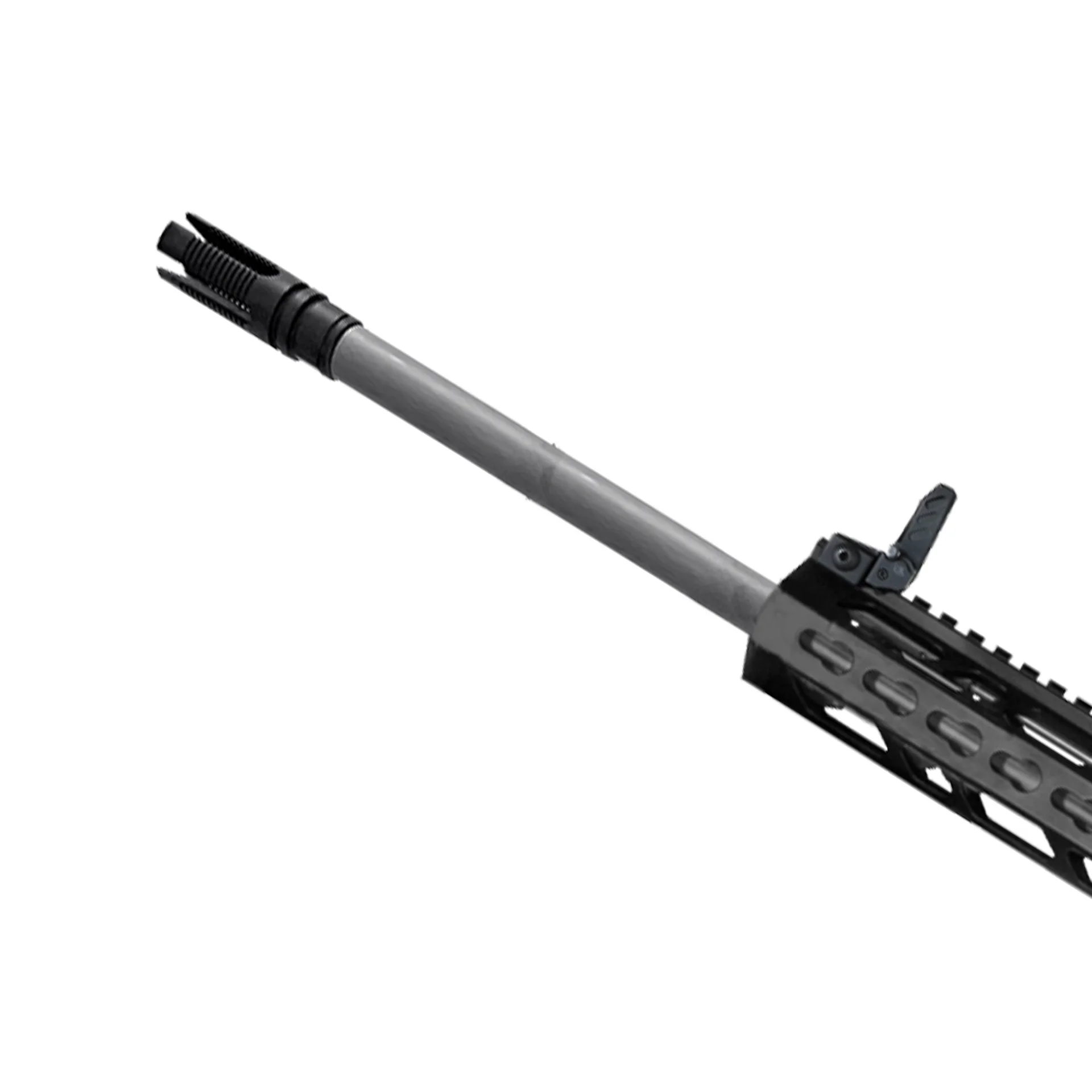

FLASH HIDER
Shuriken
any type of tactical compensator or muzzle brake
RIFLING
1 x 10 or 1 x 12 twist
BOLT GROUP
Made of 8620 Steel
BODY COLOR
Anodized Black
ACCURACY
Maximum of One (1) MOA
using match ammunition
MUZZLE VELOCITY
Approximately 2,600 ft/sec
